We have discontinued the Lehle Pedals and Effects line for 2007

Lehle

Custom Amp Switchers Pedal & Effects Loopers

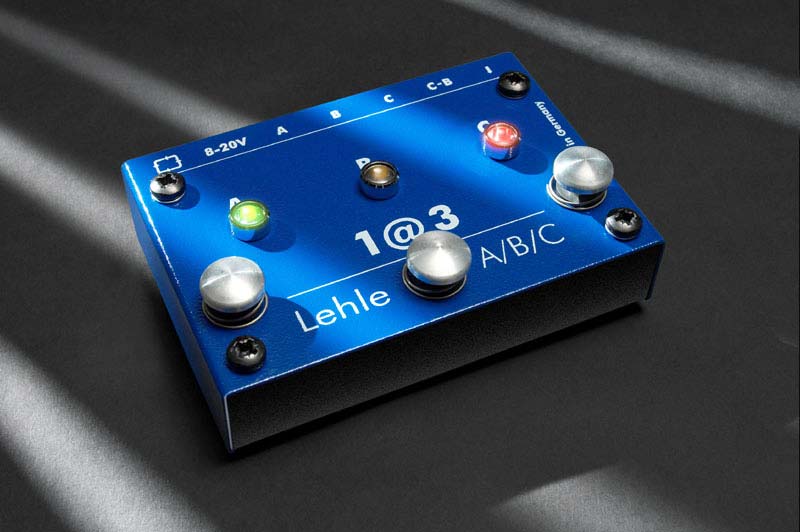

The Lehle 1@3 can be used in 1 of 2 modes: Mode 1 enables you to switch between three amps - the signal is routed (without semiconductors) directly via gold plated relays to 1 of the 3 outputs: A, B or C. The other 2 outputs are muted. Mode 2 allows the user to plug their effects chain into the special C-B input (Output C is muted). In this mode, the effects chain is tied into amp B as follows: when "B" is depressed, the input signal is routed to amp B - dry (effects chain bypassed); when "C" is depressed, the input signal is routed to amp B - wet (effects chain engaged). The Lehle 1@3 can use any power supply between 8 and 20 V with either polarity (AC or DC). The supply voltage is internally rectified and stabilized in order to guarantee trouble free operation. High intensity LEDs behind a magnifying lens makes it easy to read switching state (A, B or C) even under bright spotlights. All Lehle switchers are totally passive. To the purist, what this means is that the great tone you bought your particular tube amp for in the first place will not be compromised. Active switcher boxes (with their resultant change in impedance from high to low) cause an amp's crunch/distorted tone to become fuzzy. Lehle switchers maintain that unique interaction between guitar and amp, as if there is only a high quality cable in between.

List $239.00

Extreme Price: $219.99

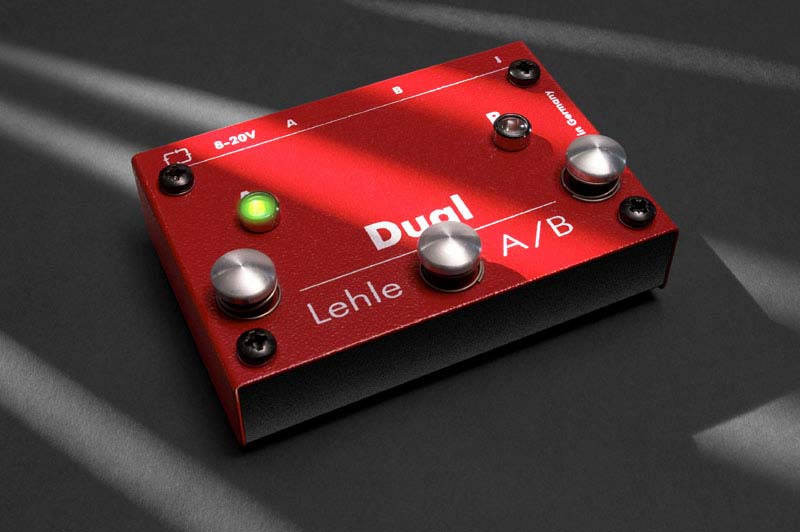

The Lehle Dual enables you to switch between two amps or run your signal to both amps. The signal is routed directly (without semiconductors) via gold plated relays to Output A or B or both. A is electrically isolated from B by means of a high end (lundahl) line splitter; humming loops are impossible, even if A and B are switched on simultaneously. The Lehle Dual can use any power supply between 8 and 20 V with either polarity (AC or DC). The supply voltage is internally rectified and stabilized in order to guarantee trouble free operation. High intensity LEDs behind a magnifying lens make it easy to read switching state (A and/or B) even under bright spotlights. External trim potentiometers make it possible to adjust Output A or B if both are engaged simultaneously. For example, gain (up to 6 dB) can be trimmed back so that one amp gets hit harder than the other. All Lehle switchers are totally passive. To the purist, what this means is that the great tone you bought your particular tube amp for in the first place will not be compromised. Active switcher boxes (with their resultant change in impedance from high to low) cause an amp's crunch/distorted tone to become fuzzy. Lehle switchers maintain that unique interaction between guitar and amp, as if there is only a high quality cable in between.

List $259.00

Extreme Price: $239.99

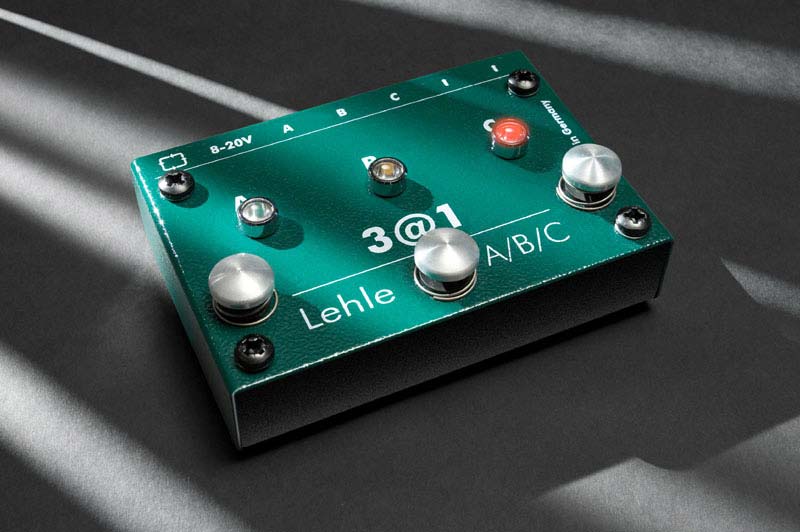

The Lehle 3@1 enables players to plug in three instruments and route them (A, B or C) to one amp. All three inputs are routed in stereo to both parallel outputs. One output can be utilized for a tuner and the other to the amp. The signal is routed (without semiconductors) directly via gold plated relays to both outputs. Internal trim potentiometers (for B and C) make it possible to adjust input levels of various instruments to achieve a balanced level to the amp. The Lehle 3@1 can use any power supply between 8 and 20 V with either polarity (AC or DC). The supply voltage is internally rectified and stabilized in order to guarantee trouble free operation. High intensity LEDs behind a magnifying lens makes it easy to read switching state (A, B or C) even under bright spotlights. All Lehle switchers are totally passive. To the purist, what this means is that the great tone you bought your particular tube amp for in the first place will not be compromised. Active switcher boxes (with their resultant change in impedance from high to low) cause an amp's crunch/distorted tone to become fuzzy. Lehle switchers maintain that unique interaction between guitar and amp, as if there is only a high quality cable in between.

List $239.00

Extreme Price: $219.99

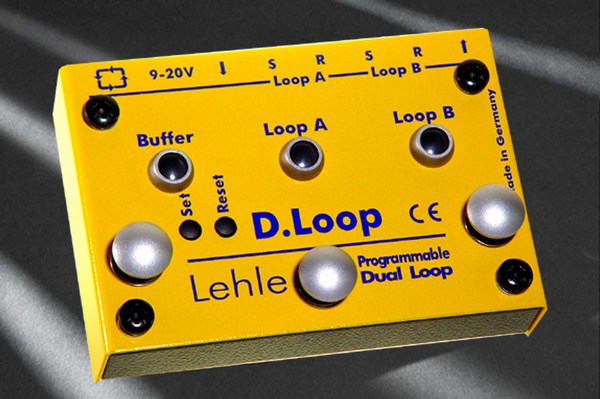

 In response to numerous requests from guitarists, Lehle is pleased to announce the introduction of a fully programmable Dual Effects Looper/Switcher called the "D.Loop". The unit allows the guitarist to switch in effects loop A, effects loop B, or both effects loops at the same time (all in stereo). A buffered input which changes impedance from high to low can also be switched in, allowing the player to utilize long cable runs or clean effects with maximum effectiveness. In addition, the D.Loop is MIDI capable. The Lehle D.Loop can use any power supply between 8 and 20 V with either polarity (AC or DC). The supply voltage is internally rectified and stabilized in order to guarantee trouble free operation. High intensity LEDs behind a magnifying lens makes it easy to read switching state (Buffer, Loop A, Loop B) even under bright spotlights. All Lehle switchers are totally passive. To the purist, what this means is that the great tone you bought your particular tube amp for in the first place will not be compromised. Active switcher boxes (with their resultant change in impedance from high to low) cause an amp's crunch/distorted tone to become fuzzy. Lehle switchers maintain that unique interaction between guitar and amp, as if there is only a high quality cable in between.

List $270.00

Extreme Price: $249.99
